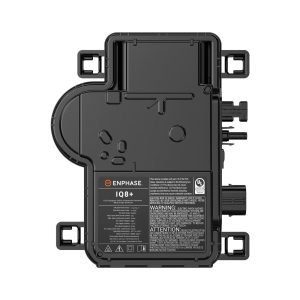

(BOX x 18 )ENPHASE ENERGY IQ8PLUS-72-2-US MICROINVERTER IQ8+ Plus 18 FREE Trunk CableS

0 out of 5

$2,399.00

BOX OF 18



IQ8PLUS-72-2-US plus IQ Trunk Cable & Connector

NEW 2023 MODEL with integrated MC4 connectors. (No DC Plug needed)

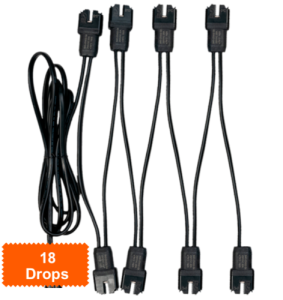

One IQ Cable plus connector Drop  (Portrait) Included  FREE with purchase of each unit.

FOR EXAMPLE:  If  you buy 8 microinverters , we will deliver them with a string of 8 IQ Connectors & IQ trunk  cable  (as in picture).





Without a doubt the more innovative of all the inverter technologies, Enphase release a new design at an average rate of 1.4-years between models as the Enphase iQ7 range is a 7th generation product within 10 years. Internal temperature is maintained using a solid state fanless design achieving an exceptional IP 67 weather rating.
Enphase iQ8 inverter technology is almost that. The iQ8 registers outstanding for different temperature extremes operating from -40oC through to +65oC. Unattained by certification is the internal temperature departing point of the iQ8+.

5 in stock (can be backordered)

SKU: 10908X18 Category: Solar

Description

BOX OF 18

IQ8PLUS-72-2-US plus IQ Trunk Cable & Connectors

NEW 2023 MODEL with integrated MC4 connectors. (No DC Plug needed)

One IQ Cable plus connector Drop  (Portrait) Included  FREE with purchase of each unit.

FOR EXAMPLE:  If  you buy 8 microinverters , we will deliver them with a string of 8 IQ Connectors & IQ trunk  cable  (as in picture).



Without a doubt the more innovative of all the inverter technologies, Enphase release a new design at an average rate of 1.4-years between models as the Enphase iQ7 range is a 7th generation product within 10 years. Internal temperature is maintained using a solid state fanless design achieving an exceptional IP 67 weather rating.

IQ8PLUS-72-2-US plus IQ Cable & Connector

NEW 2023 MODEL with integrated MC4 connectors. (No DC Plug needed)

One IQ Cable plus connector Drop  (Portrait) Included  FREE with purchase of each unit.

FOR EXAMPLE:  If  you buy 8 microinverters , we will deliver them with a string of 8 IQ Connectors & IQ cable cable  (as in picture).

These new  IQ8+ Microinverters are the industry’s first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.

The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55 nm technology with high-speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.

Part of the Enphase Energy System, IQ8+ Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.

IQ8+ Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.

Connect PV modules quickly and easily to theIQ 8 Series Microinverters that have integrated MC4 connectors.

IQ8+ Microinverters are UL Listed as PV Rapid Shutdown equipment and conform with various regulations when installed according to the manufacturer’s instructions.

  • Lightweight and compact with plug-and-play connectors
  • Power line communication (PLC) between components
  • Faster installation with simple two-wire cabling
  • Produce power even when the grid is down
  • More than 1 million cumulative hours of testing

  • Peak output power: 300 VA
  • Input power: 235 – 440 W
  • Maximum continuous output power: 290 VA
  • Operating range: 16 – 58 V
Length212.00 mm
Width175.00 mm
Height30.20 mm
Weight1.1 kg
  • Class II double-insulated enclosure
  • Optimized for the latest high-powered PV modules
  • Complies with the latest advanced grid support
  • Remote automatic updates for the latest grid requirements
  • Configurable to support a wide range of grid profiles
  • Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
  • Required for Sunlight Jump Start

WARRANTY
IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Each shipment will be notified with the serial numbers for the warranty
Enphase iQ  inverter technology is almost that. The iQ  registers outstanding for different temperature extremes operating from -40oC through to +65oC. Unattained by certification is the internal temperature departing point of the iQ8+.
 Weight concerns are minimal at 1kg per device and noise emission is obsolete.Once viewed as the pioneering solar technology pushing innovative boundaries, Enphase is often renowned as an overall product of refinement.
A decade after Enphase’s original product release, the Enphase iQ  range, should be considered the most refined Enphase model yet.

Additional information

Weight50 oz
Dimensions6 × 5 × 1 in
